SVOD-Project

heloo dear...

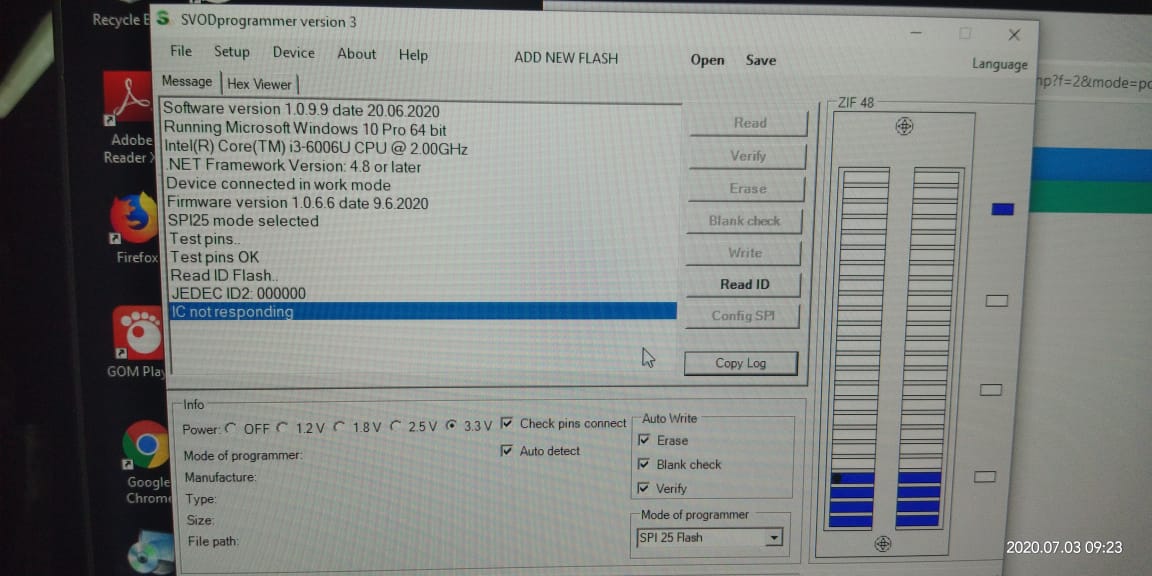

we have problem, SVOD3 if i read the ic bios problem IC Not Responding, this problem if i instal in winddows 10, before i use in windows 7 no problem, can help the solution. thanks

I do not understand your question.
I think no one can help on the basis of the information provided.
Have you tried to run EventGhost with -debug options?

Pako

Check voltage on pins 1,2,3,5,6,7,8 to pin 4.
If voltage is dropping on pin 8 spi (vcc) when read id is selected then...
1. Inspect svod internal mosfet on this line
2. Apply 3v to this pin from external power source and if spi can be read revert to point 1.
3. SPI is in board and you should unsolder it.
4 SPI is broken, internally shorted.

im having same problem not able to use it until now since last use 2019. how to solve the problem?

it seem to be JEDEC Controller Faulty diferent Code come out

JEDEC ID: E3301E
Unknow manufacturer
Unknow type flash

JEDEC ID2: 9F9F9F
IC not responding

How to solve this ? please help

hello
try set speed lower
menu-setup-spi speed

yes me too
how to downgrade firmware svod?
after update to Firmware version 1.0.7.0 date 9.3.2021 all chip bios ic not responding.log bellow
Software version 1.1.0.6 date 09.03.2021
Running Microsoft Windows 10 Pro 64 bit
Intel(R) Core(TM) i5-3350P CPU @ 3.10GHz
.NET Framework Version: 4.8 or later
Device connected in work mode
Firmware version 1.0.7.0 date 9.3.2021
SPI25 mode selected
Test pins..
Test pins OK
Read ID Flash..
JEDEC ID2: FFFFFF
IC not responding

i have same problem.... I tried to contact support via skype and telegram ... but I have not received any response .... the problem appeared immediately after the last firmaware update .... how can I solve ??? i bought svod3 in march 2021... please help me ... i cant use the programmer for 25spi programming
